Description

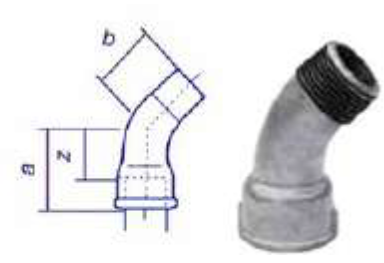

| REFERENCIA | A | B | Z |
|---|---|---|---|
| FIG.40-1/2″ | 36 | 30 | 23 |
| FIG.40-3/4″ | 43 | 36 | 28 |
| FIG.40-1″ | 51 | 42 | 34 |
| FIG.40-1″1/4 | 64 | 54 | 45 |
| FIG.40-1″1/2 | 68 | 58 | 49 |
| FIG.40-2″ | 81 | 70 | 57 |
| FIG.40-2″1/2 | 99 | 86 | 72 |
| FIG.40-3″ | 113 | 100 | 83 |
| FIG.40-4″ | 142 | 126 | 106 |
45° Male-Female Curve Fitting
The 45° male‑female curve fitting is a low‑pressure steel component used to change flow direction in hydraulic and pneumatic circuits. It is supplied in sizes from 1/2″ to 4″ (FIG.40 series) with precise A, B and Z dimensions, complying with ISO 724 standards. Ideal for compact installations, the fitting features a male‑female thread for quick, leak‑free assembly and a zinc‑coated finish for corrosion resistance. Immediate stock availability – contact Cohimar for pricing.
- Hydraulic routing in agricultural machinery
- low‑pressure cooling water circuits
- pneumatic control line bends
- material handling equipment pipework
Available in FIG.40 sizes from 1/2″ to 4″ with exact A, B and Z dimensions for each nominal size. Meets ISO 724 low‑pressure fitting standards and includes a zinc‑coated carbon‑steel body.
