Description
| REFERENCIA | CAUDAL ACEITE L/MIN | CAPACIDAD L | VOLTAGE V | FREQUENCIA HZ | POTENCIA W | CORRIENTE A | FLUJO AIRE M3/H | PESO KG | Ø mm | RECAMBIO ELECTROVENTILADOR |
|---|---|---|---|---|---|---|---|---|---|---|
| SES-3RAP680EB | 100-300 | 15 | 230/400 | 50 | 690 | 2,34 | 6.300 | 62 | 500 | SES-1VNA4D500DV |

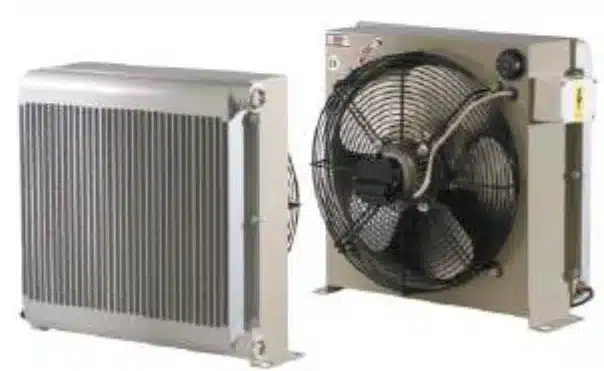

AP 680 EB Heat Exchanger
The AP 680 EB heat exchanger is a compact oil‑to‑air cooler for hydraulic systems, delivering 100‑300 L/min oil flow and a 15 L thermal capacity. Built with an aluminium finned core and steel housing, it operates on 230/400 V three‑phase, 50 Hz, consuming 690 W at 2.34 A. An integrated fan provides up to 6 300 m³/h of airflow. Suitable for metal‑working machines, construction equipment, presses, and agricultural machinery. Available in stock for immediate delivery – contact Cohimar for pricing.
- Hydraulic cooling in metal‑working machines
- Power‑pack oil temperature control for construction equipment
- Cooling loops for industrial presses
- Thermal management in agricultural machinery
Handles 100‑300 L/min oil flow with a 15 L cooling capacity; powered by 230/400 V three‑phase, 690 W, and delivers 6 300 m³/h of forced air.
