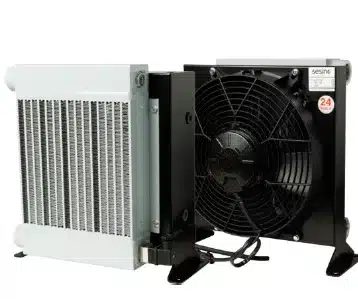

The BC250 heat exchanger with thermostat provides reliable oil cooling for hydraulic systems. Available in 12 V and 24 V versions, it handles 20‑150 L/min oil flow, offers a 2 L fluid capacity and 180 W cooling power, and includes an integrated fan delivering 1.6 m³/h air flow. Constructed from a steel housing with aluminum fins, it meets ISO 9001 standards and weighs 10 kg. Ideal for presses, mobile equipment, machining centers and power‑generation hydraulics. Immediate stock at Cohimar – request a quote today.
| REFERENCIA | CAUDAL ACEITE L/MIN | CAPACIDAD L | VOLTAGE V | POTENCIA W | CORRIENTE A | FLUJO AIRE M3/H | PESO KG | RECAMBIO ELECTROVENTILADOR |
|---|---|---|---|---|---|---|---|---|
| SES-3RBC25012T247 | 20-150 | 2 | 12 | 180 | 15 | 1.600 | 10 | SES-1VNAPL30012C |
| SES-3RBC25024T247 | 20-150 | 2 | 24 | 180 | 7,5 | 1.600 | 10 | SES-1VNAPL30024C |
Oil flow 20‑150 L/min, 2 L capacity, 180 W cooling power, 12 V/24 V options, integrated fan 1.6 m³/h, weight 10 kg.
