The Smooth PTFE Stainless Steel Hydraulic Hose provides a chemically resistant PTFE liner and stainless‑steel braid for high‑temperature hydraulic circuits. Offered in sizes 3/16″ to 1″ (DN 5‑25) with pressure ratings from 300 bar down to 65 bar, it meets ISO and SAE standards for industrial fluid power. Ideal for metalworking, food‑processing, pharmaceutical and high‑temperature oil systems. Immediate stock – contact Cohimar for pricing.
| REFERENCIA | DN | INT | EXT | PRESIÓN | |
|---|---|---|---|---|---|
| BAR | PSI | ||||
| BO-TR17-03 | 3/16″ | 5 | 7,8 | 200 | 3000 |
| BO-TR17-04 | 1/4″ | 6 | 8,6 | 175 | 2600 |
| BO-TR17-05 | 5/16″ | 8 | 11,6 | 150 | 2250 |
| BO-TR17-06 | 3/8″ | 10 | 12,7 | 135 | 2000 |
| BO-TR17-08 | 1/2″ | 13 | 15,4 | 120 | 1750 |
| BO-TR17-10 | 5/8″ | 16 | 18,4 | 100 | 1500 |
| BO-TR17-12 | 3/4″ | 19 | 22,1 | 90 | 1250 |
| BO-TR17-16 | 1″ | 25 | 29,8 | 65 | 750 |

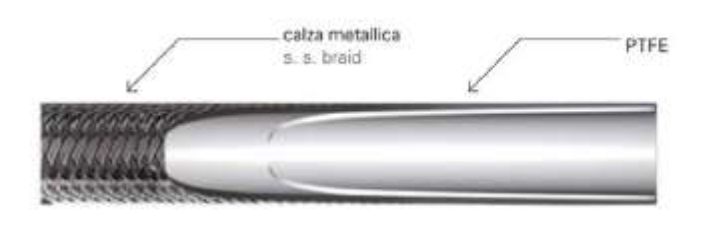

Available in sizes 3/16″ to 1″ (DN 5‑25) with pressure ratings from 300 bar (3/16″) to 65 bar (1″). PTFE smooth liner and stainless‑steel braid ensure superior chemical resistance and high‑temperature performance.
