The Marshell male‑female reduced sleeve provides a compact step‑down connection for low‑pressure hydraulic systems. It is used to transition between pipe sizes from 3/8″‑1/2″ up to 1½”‑2″ and complies with the Marshell standard. Constructed from robust steel, the sleeves feature a male thread on the larger end and a female thread on the smaller end, with overall lengths between 22 mm and 41.5 mm. Ideal for hydraulic manifolds, machine tools, agricultural equipment and mobile machinery. Immediate stock – contact Cohimar for pricing and delivery.

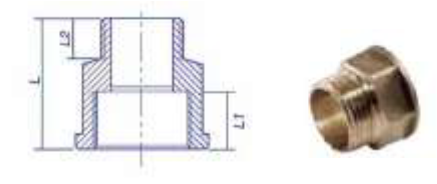

| REFERENCIA | ROSCA | L | L1 | L2 |
|---|---|---|---|---|
| MT-87246-01015 | 3/8″ -1/2″ | 23 | 11,5 | 8 |
| MT-87246-01510 | 1/2″ -3/8″ | 22 | 8,5 | 11 |
| MT-87246-01520 | 1/2″ -3/4″ | 25 | 12 | 11 |
| MT-87246-01525 | 1/2″ -1″ | 28 | 13,5 | 11 |
| MT-87246-02015 | 3/4″ -1/2″ | 24 | 13 | 12 |
| MT-87246-02025 | 3/4″ -1″ | 30 | 15 | 12 |
| MT-87246-02520 | 1″ -3/4″ | 27 | 15 | 13 |
| MT-87246-02532 | 1″ -1″1/4 | 32 | 16 | 13 |
| MT-87246-02540 | 1″ -1″1/2 | 34 | 17 | 13 |
| MT-87246-02550 | 1″ -2″ | 38 | 19,5 | 13 |
| MT-87246-03240 | 1″1/4 -1″ 1/2″ | 34 | 16 | 15 |
| MT-87246-03250 | 1″1/4 -2″ | 41,5 | 20 | 17 |
| MT-87246-04050 | 1″1/2 -2″ | 41,5 | 20,5 | 17 |
Size reductions from 3/8″‑1/2″ to 1½”‑2″; overall length L 22–41.5 mm; reference codes MT‑87246‑01015 to MT‑87246‑04050.
