The Chromed Brass Inline One-Way Flow Regulator with Check Valve provides precise, unidirectional flow control for hydraulic circuits. Made from brass with a chrome finish, it resists corrosion and wear. Offered in 1/4″, 3/8″, 1/2″ and 3/4″ NPT sizes, each unit includes an integrated check valve to prevent back‑flow. Rated up to 20 bar pressure and compatible with standard hydraulic fittings, it is ideal for presses, metal‑forming equipment, injection molding machines and agricultural machinery. Immediate availability from Cohimar – request a quote today.

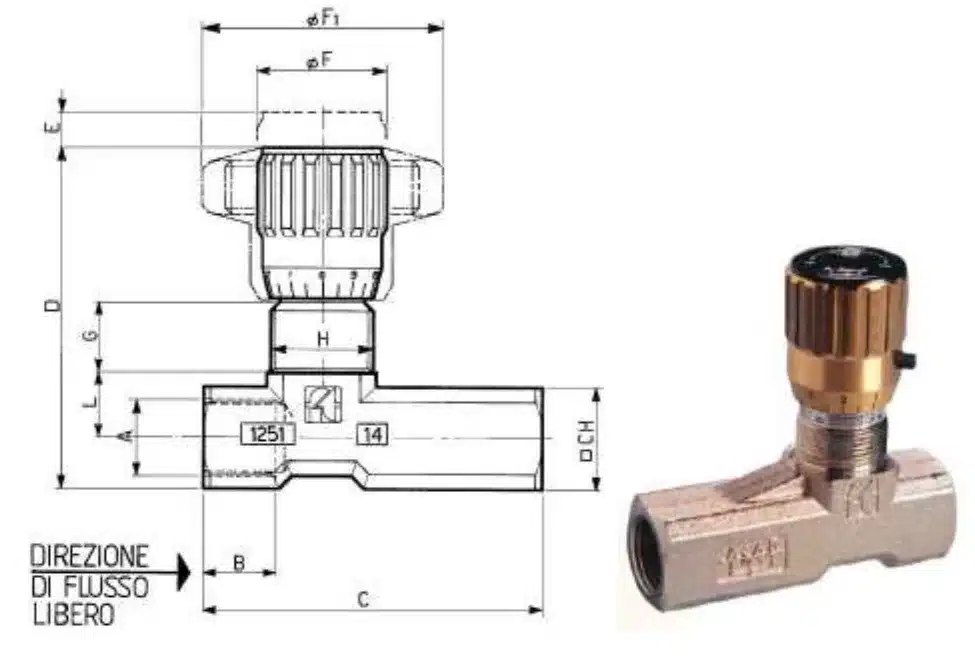

| REFERENCIA | ROSCA | B | C | D | E | ØF | ØF1 | G | H | L | CH | KG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-1251/5-14 | 1/4″ | 12 | 56 | 57 | 4,5 | 22 | 40 | 11 | M17X1 | 11,5 | 18 | 0,138 |
| FT-1251/5-38 | 3/8″ | 13 | 64,5 | 69 | 7 | 27 | 50 | 12,5 | M20X1 | 15 | 22 | 0,259 |
| FT-1251/5-12 | 1/2″ | 16 | 87 | 82 | 10 | 33 | 70 | 13 | M25X1,5 | 19 | 27 | 0,499 |
| FT-1251/5-34 | 3/4″ | 20 | 115 | 100 | 12 | 38 | 80 | 15 | M30X1,5 | 22 | 34 | 0,975 |
Available in 1/4″, 3/8″, 1/2″ and 3/4″ NPT sizes; pressure rating up to 20 bar; integrated check valve for back‑flow protection.
