Description
| REFERENCIA | ROSCA | A | B | C | D | E | F | G | H | L | N | Q | S | BAR | LPM | PRESIÓN MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OFC-PRL800420B | 3/4″ | 80 | 57 | 20 | 28 | 23,5 | 60 | 6 | 6,5 | 48 | 6 | 68 | 40 | 30-260 | 80 | 350 |

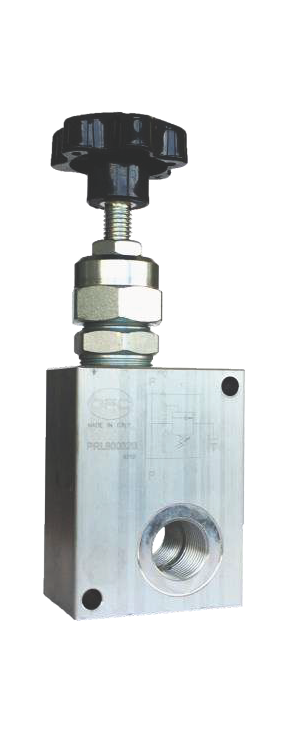

Inline Pressure Regulator with Knob PRL80
The PRL80 Inline Pressure Regulator with knob provides precise pressure control for hydraulic systems. Featuring a 3/4″ standard thread, it operates within a 30‑260 bar range and tolerates up to 350 bar maximum pressure, with a flow capacity of up to 80 L/min. Constructed from high‑strength steel, it is ideal for high‑pressure applications in metal forming, lifting, injection molding, and offshore equipment. Immediate stock availability – contact Cohimar for pricing and delivery.
- Metal forming presses
- Hydraulic lifting systems
- Injection molding machines
- Offshore drilling equipment
Pressure range 30‑260 bar, maximum allowable pressure 350 bar, flow capacity up to 80 L/min, 3/4″ thread, manual knob adjustment for fine tuning.
