The VPDE LVDL double pilot‑operated inline check valve provides reliable one‑way flow protection for hydraulic circuits. Available in 1/4″, 3/8″ and 1/2″ NPT threads, it handles pressures up to 260 bar and flow rates up to 65 L/min. Constructed from high‑strength steel, the valve meets standard hydraulic specifications and fits seamlessly into power units, mobile machinery, presses and high‑pressure systems. Immediate stock availability – request a quote from Cohimar now.

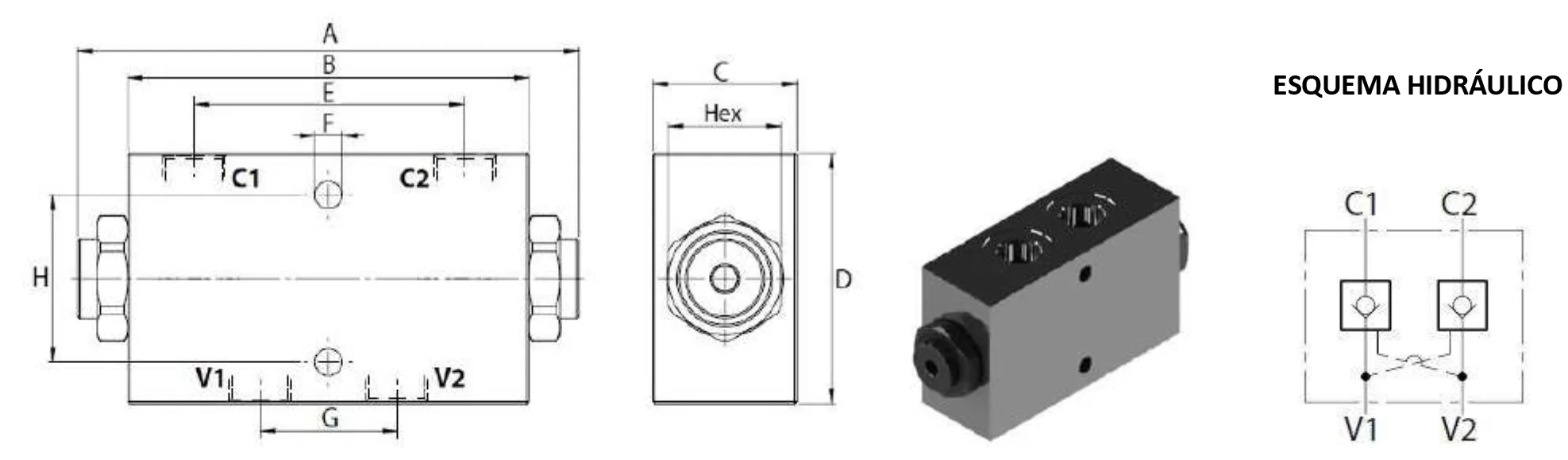

| REFERENCIA | ROSCA | L/MIN | A | B | C | D | E | F | G | H | H2 | LPM | PRESIÓN MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OFC-LVDL01 | 1/4″ | 20 | 113 | 90 | 25 | 50 | 62 | 6,5 | 32 | 40 | 22 | 20 | 260 |
| OFC-LVDL15 | 3/8″ | 20 | 113 | 90 | 25 | 50 | 62 | 6,5 | 32 | 40 | 22 | 20 | 260 |
| OFC-LVDL02 | 3/8″ | 40 | 113 | 96 | 35 | 60 | 62 | 6,5 | 32 | 40 | 27 | 35 | 260 |
| OFC-LVDL25 | 1/2″ | 65 | 113 | 96 | 35 | 60 | 62 | 6,5 | 32 | 40 | 27 | 35 | 260 |
Four sizes are offered (1/4″, 3/8″ low‑flow, 3/8″ high‑flow, 1/2″) with a maximum pressure rating of 260 bar and flow capacities ranging from 20 L/min to 65 L/min.
