The NG6 (CETOP3) NBVP check valve features a 24 V DC electric actuator for reliable one‑way flow control in medium to high pressure hydraulic circuits. Designed for pressures between 250 and 400 bar and flow rates up to 20 L/min, it complies with IEC 60534‑2‑1 and ISO 4414 standards. Constructed from forged steel with an aluminium actuator housing, the valve is suitable for automation, machine tools, and process plants. Available in stock for immediate delivery – contact Cohimar for a quotation.

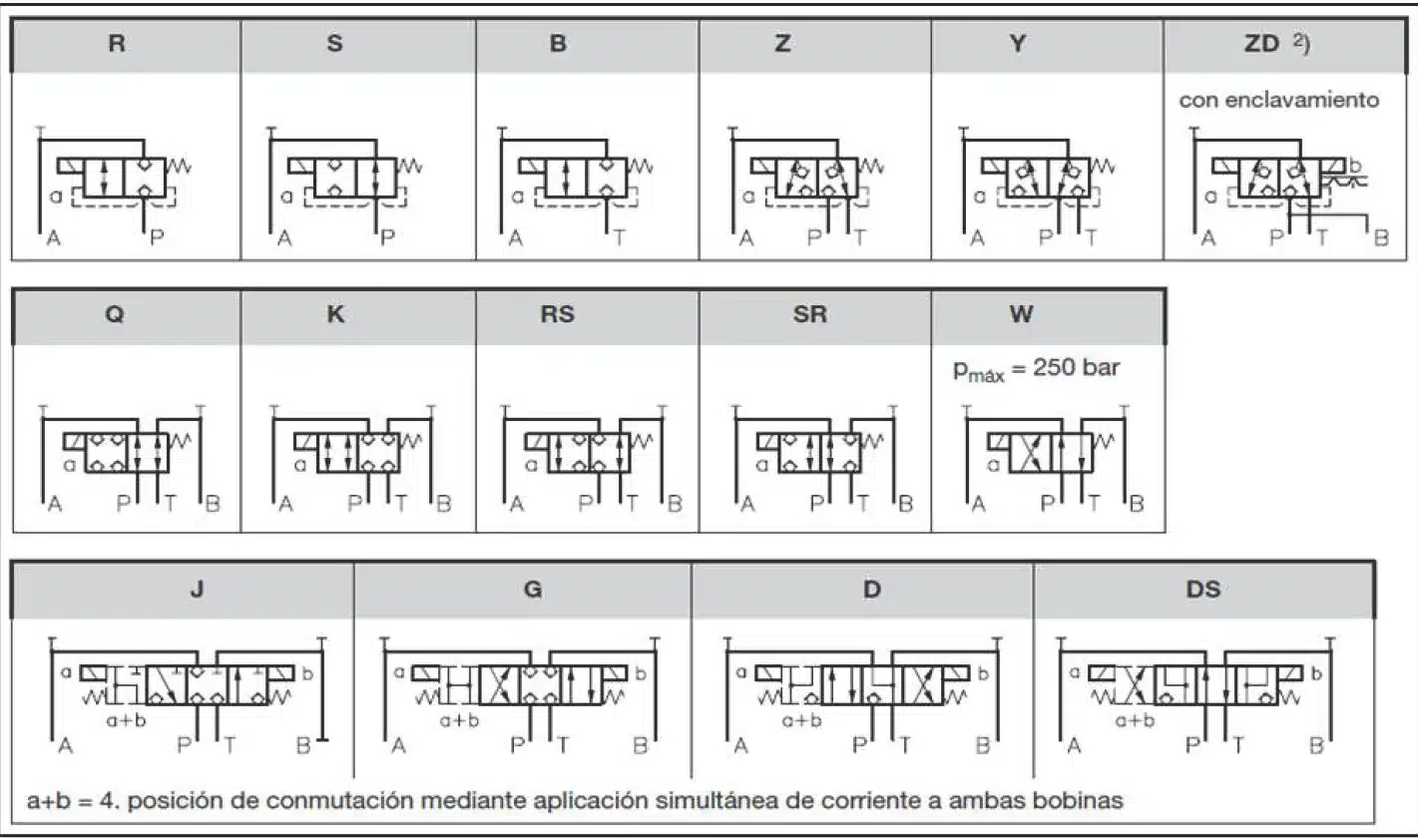

| REFERENCIA | MODELO | PRESIÓN BAR | CAUDAL (L/MIN) | SÍMBOLO |
|---|---|---|---|---|
| HAWE-6955 6935-00 | NBVP 16 R-G24 | 400 | 20 | R |
| HAWE-6956 6250-00 | NBVP 16 S-G24 | 400 | 20 | S |
| HAWE-6951 1348-00 | NBVP 16 Z-G24 | 400 | 20 | Z |
| HAWE-6955 7985-00 | NBVP 16 Y-G24 | 400 | 20 | Y |
| HAWE-6957 1673-00 | NBVP 16 W-G24 | 250 | 20 | W |
| HAWE-3408 8133-00 | NBVP 16 G-G24 | 400 | 20 | G |
| HAWE-6955 8445-00 | NBVP 16 D-G24 | 400 | 20 | D |
Pressure rating from 250 bar to 400 bar, flow capacity up to 20 L/min, and 24 V DC electric actuation. NBVP internal geometry ensures consistent one‑way flow performance across the series.
