Description

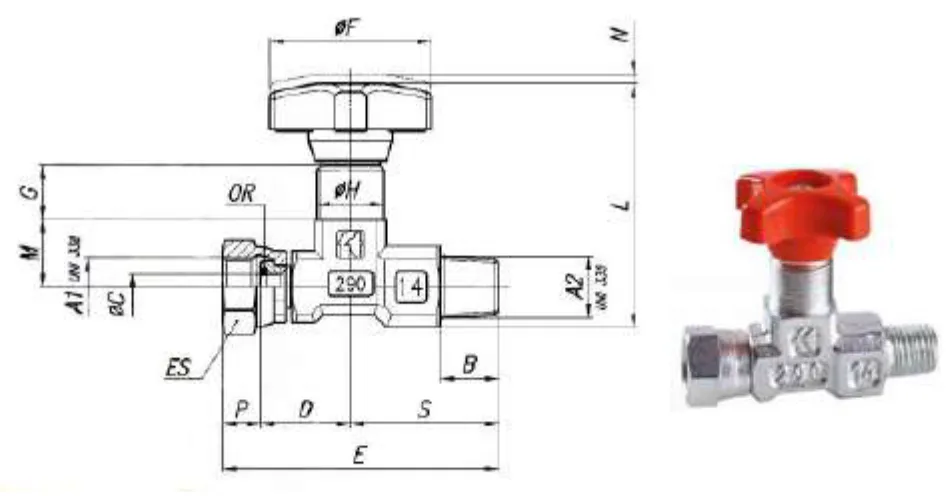

| REFERENCIA | ROSCA | B | ØC | D | E | ØF | G | H | L | M | N | P | S | OR | ES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-290-14 | 1/4″ | 13 | 5,6 | 20 | 61,5 | 34 | 12 | M15X1 | 53 | 15 | 2 | 8,5 | 33 | 2018 | 18 |
| FT-290-12 | 1/2″ | 16 | 6,5 | 32 | 83 | 40 | 12,5 | M20X1 | 82,5 | 19 | 6 | 11 | 40 | 2021 | 27 |
Straight Outlet Pressure Gauge
The Straight Outlet Pressure Gauge is a stainless‑steel hydraulic gauge with a linear outlet, offered in 1/4″ (FT‑290‑14) and 1/2″ (FT‑290‑12) thread sizes. It features M15×1 or M20×1 gauge connections, compact lengths of 53 mm and 82.5 mm, and complies with ISO 5169 pressure‑range standards. Ideal for hydraulic presses, molding equipment, mobile earth‑moving and agricultural machinery. Immediate stock availability – contact Cohimar for pricing.
- Hydraulic press machines
- Industrial molding equipment
- Mobile earth‑moving hydraulics
- Agricultural machinery
Available in 1/4″ (FT‑290‑14) and 1/2″ (FT‑290‑12) thread sizes with M15×1 or M20×1 gauge connections; compact overall lengths of 53 mm and 82.5 mm respectively; stainless‑steel construction meeting ISO 5169.
