The M25 Plate Heat Exchanger is a compact steel‑plate unit for hydraulic oil cooling, offered in five sizes with heat‑transfer surfaces from 1.05 to 2.80 m². Oil flow capacity ranges from 20 to 240 L/min, delivering cooling power up to 3 kW. Designed for mobile equipment, industrial machinery and power‑pack systems, the exchanger meets European pressure‑vessel standards and is available in stock for immediate delivery. Contact Cohimar for pricing and delivery details.

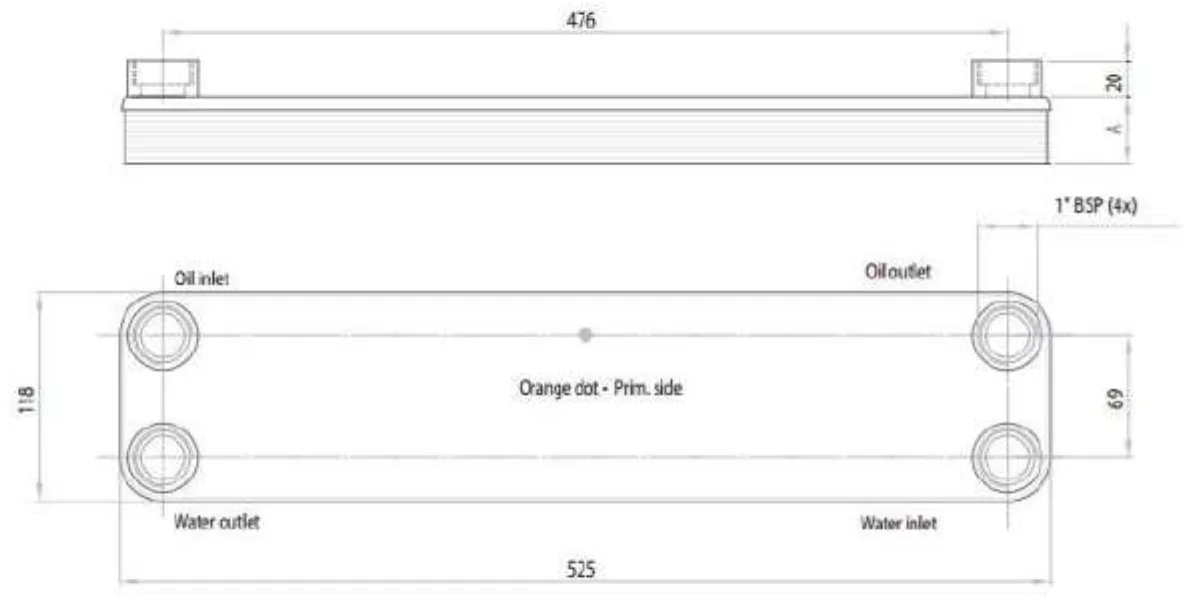

| REFERENCIA | SUPERFICIE | CAUDAL ACEITE L/MIN | CAPACIDAD ENFRIAMIENTO | PESO | A |
|---|---|---|---|---|---|
| SES-1PSPHE25-30 | 1,05 | 20÷80 | 0,49÷0,91 | 8,3 | 87 |
| SES-1PSPHE25-40 | 1,4 | 40÷120 | 0,80÷1,49 | 10,3 | 112 |
| SES-1PSPHE25-50 | 1,75 | 50÷160 | 1,00÷2,00 | 12,3 | 138 |
| SES-1PSPHE25-60 | 2,1 | 60÷200 | 1,30÷2,50 | 14,3 | 164 |
| SES-1PSPHE25-80 | 2,8 | 80÷240 | 1,90÷3,00 | 18,3 | 215 |
Plate heat exchanger series M25 provides heat‑transfer surfaces of 1.05‑2.80 m², oil flow rates of 20‑240 L/min and cooling capacities up to 3 kW, with a compact steel construction weighing 8‑18 kg.
