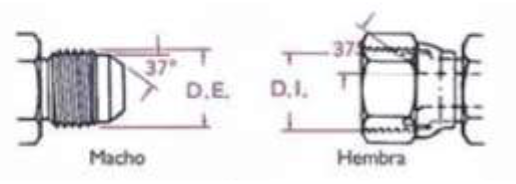

The SAE 37° JIC hydraulic fitting provides a 37° flare male end and matching female socket for high‑pressure hydraulic systems. It is supplied in sizes from 5/16″‑24 up to 2″‑1/2‑12, with exact external and internal diameters per SAE standards. Typically made from carbon steel with optional stainless‑steel options, these fittings ensure leak‑free connections in mobile equipment, industrial presses, agricultural machinery, and construction excavators. Immediate stock availability – contact Cohimar for a quote.
| GALGA | ROSCA | DM EXT MACHO | DM INT HEMBRA |
|---|---|---|---|
| 2 | 5/16″-24 | 7,93 | 7,14 |
| 3 | 3/8″-24 | 9,52 | 8,73 |
| 4 | 7/16″-20 | 11,11 | 9,92 |
| 5 | 1/2″-20 | 12,7 | 11,11 |
| 6 | 9/16″-18 | 14,28 | 12,7 |
| 8 | 3/4″-16 | 19,05 | 17,46 |
| 10 | 7/8″-14 | 22,22 | 20,63 |
| 12 | 1 1/16″-12 | 26,98 | 24,6 |
| 16 | 1 5/16″-12 | 33,33 | 30,95 |
| 20 | 1 5/8″-12 | 41,27 | 38,89 |
| 24 | 1 7/8″-12 | 47,62 | 45,24 |
| 32 | 2″ 1/2-12 | 63,5 | 61,11 |
Available in sizes 5/16″‑24 to 2″‑1/2‑12, with external male and internal female dimensions matching SAE 37° JIC specifications for reliable high‑pressure sealing.
