Hydraulic Bearing Support for Gear Pump

SKU 320 Categoría:

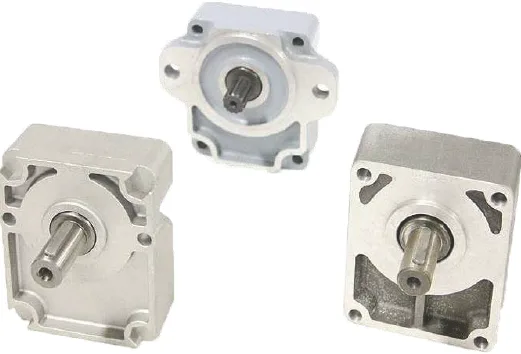

The Hydraulic Bearing Support for Gear Pump provides robust bearing accommodation for gear pump shafts, available in conical (Z14, Z18) and cylindrical (DMTR 18 mm, DMTR 22 mm) versions. Designed to DIN 5482 specifications, it features mounting dimensions of 25 × 22 mm, 28 × 25 mm or 35 × 31 mm and includes centering outputs of 60.3 mm or 50.7 mm where required. Made from heat‑treated carbon steel, it ensures high load capacity and long service life in mobile equipment, construction machinery, and plant hydraulic systems. Immediate stock availability – request a quote now.

Description

REFERENCIA DESCRIPCIÓN
BOR-25401 SOPORTE C/RODAMIENTO BOMBA GR.1 EJE CONICO Z14 25X22 DIN5482
BOR-25402 SOPORTE C/RODAMIENTO BOMBA GR.2 EJE CONICO Z14 25X22 DIN5482
BOR-25404-4 SOPORTE C/RODAM. GR.3 EJE CONICO Z18 35X31 DIN5482 (SALIDA CENTRADOR 60,3mm.)
BOR-25404-6 SOPORTE C/RODAM. GR.3 EJE CONICO Z18 35X31 DIN5482 (SALIDA CENTRADOR 50,7mm.)
BOR-25602 SOPORTE C/RODAMIENTO BOMBA GR.2 EJE CILINDRICO DMTR.18mm Z14 25X22 DIN5482
BOR-25603 SOPORTE C/RODAMIENTO BOMBA GR.2 EJE CILINDRICO DMTR.22mm Z15 28X25 DIN5482
  • Mobile hydraulic power units
  • Construction machinery gear pump drives
  • Stationary plant hydraulic circuits
  • Agricultural equipment hydraulic systems

Supports conform to DIN 5482, with mounting sizes 25×22 mm, 28×25 mm or 35×31 mm and shaft options Z14, Z18, DMTR 18 mm and DMTR 22 mm. Includes centering outputs of 60.3 mm or 50.7 mm for GR.3 models.
