Group 1 Gear Pump with Pulley

SKU 311 Categoría: Brand:

The Group 1 Gear Pump with Pulley is a compact, zinc‑alloy hydraulic pump equipped with a 72 mm, 36° V‑belt pulley. Available in four sizes (R‑2L03, R‑2L05, R‑2L07.5, R‑2L010) covering bore diameters 76‑100 mm and shaft lengths 14‑27 mm. Both right‑hand and left‑hand configurations are offered (R‑2LxxDP01R / R‑2LxxIP01R). Designed for pressures up to 250 bar, it fits standard hydraulic power‑unit systems and complies with common gear‑pump standards. Immediate stock – request a quote now.

Description

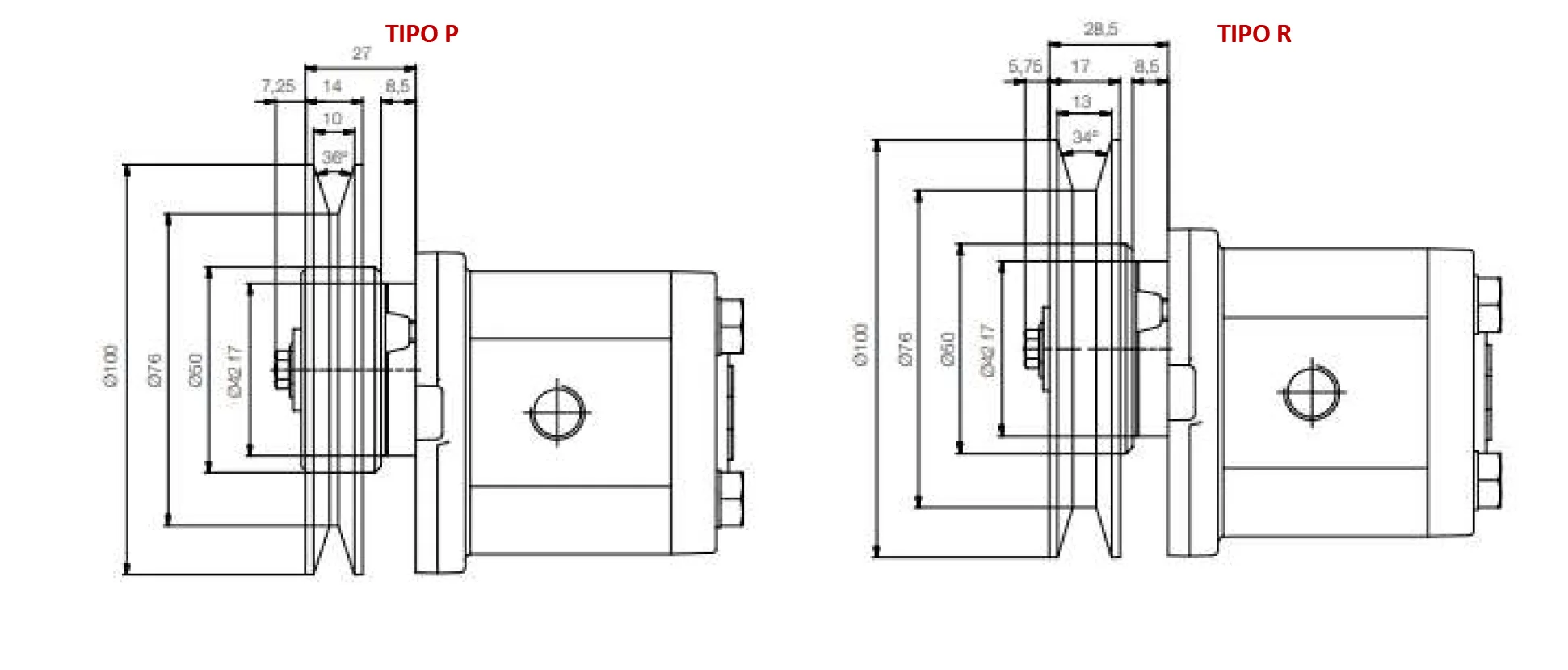

REFERENCIA DERECHA REFERENCIA IZQUIERDA POLEA A B C D E F G α TIPO CORREA
R-2L03DP01R R-2L03IP01R P 76 100 14 27 4 10 72 36º Z
R-2L05DP01R R-2L05IP01R P 76 100 14 27 4 10 72 36º Z
R-2L07’5DP01R R-2L07’5IP01R P 76 100 14 27 4 10 72 36º Z
R-2L010DP01R R-2L010IP01R P 76 100 14 27 4 10 72 36º Z
R-2L03DR01R R-2L03IR01R R 76 100 14 27 4 10 72 36º Z
R-2L05DR01R R-2L05IR01R R 76 100 14 27 4 10 72 36º Z
R-2L07’5DR01R R-2L07’5IR01R R 76 100 14 27 4 10 72 36º Z
R-2L010DR1R R-2L010IR01R R 76 100 14 27 4 10 72 36º Z
  • Hydraulic power units for machine tools
  • Mobile earth‑moving equipment
  • Agricultural machinery
  • Industrial press systems

Four size variants (R‑2L03 to R‑2L010) with 72 mm pulley, 36° V‑belt groove, and zinc‑alloy construction. Right‑hand and left‑hand reference codes available for flexible installation.
