The Roquet single‑plate gear pump with J‑shaft is a robust hydraulic pump available in right‑hand and left‑hand versions. It delivers displacements from 24 to 56 cm³ per revolution, with pressure classes up to 204 bar (A) and 77 bar (B). Constructed from cast‑iron housing and hardened steel gears, it meets ISO 2858 standards and is ideal for hydraulic power units, mobile machinery, and industrial plants. All sizes are in stock; request a quote from Cohimar now.

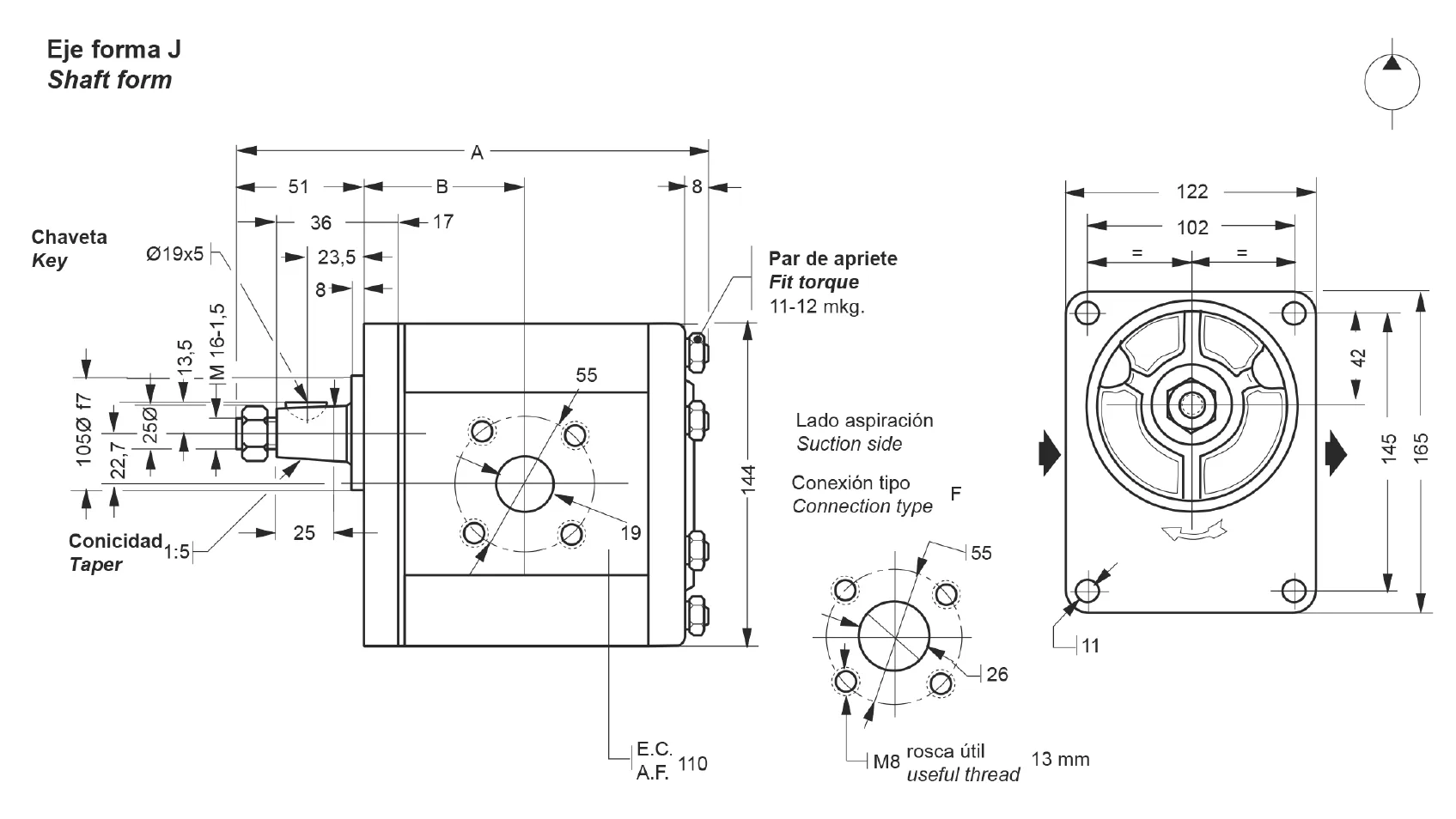

| REFERENCIA DERECHA | REFERENCIA IZQUIERDA | CILINDRADA CM3/V | A | B | PESO KG |
|---|---|---|---|---|---|
| R-1PLA36DJ23F | R-1PLA36IJ23F | 24 | 178,5 | 61 | 9,1 |
| R-1PLA45DJ23F | R-1PLA45IJ23F | 30 | 183,5 | 64,5 | 9,3 |
| R-1PLA54DJ23F | R-1PLA54IJ23F | 36 | 188,5 | 66,5 | 9,55 |
| R-1PLA66DJ23F | R-1PLA66IJ23F | 44 | 195 | 69,5 | 9,8 |
| R-1PLA84DJ23F | R-1PLA84IJ23F | 56 | 204,5 | 77 | 10,2 |
Displacement 24‑56 cm³/rev, pressure class A up to 204.5 bar, class B up to 77 bar, right‑hand and left‑hand J‑shaft options, weight 9.1‑10.2 kg.
