Descripción

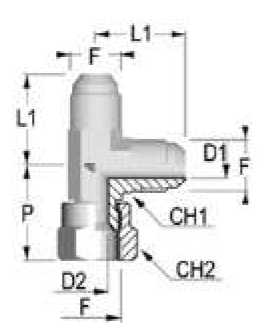

REFERENCIA | ROSCA | DM INT | L | P | CH2 |
---|---|---|---|---|---|
F-54.59.00.04 | 7/16″-20 | 6 | 22,5 | 25,5 | 16 |
F-54.59.00.05 | 1/2″-20 | 8 | 24 | 27 | 17 |
F-54.59.00.06 | 9/16″-18 | 10 | 27 | 32 | 19 |
F-54.59.00.08 | 3/4″-16 | 12 | 32 | 35,2 | 25 |
F-54.59.00.10 | 7/8″-14 | 14-16 | 36,5 | 41,5 | 27 |
F-54.59.00.12 | 1″ 1/16-12 | 18-20 | 42 | 44,3 | 32 |
F-54.59.00.16 | 1″ 5/16-12 | 25 | 46 | 50,5 | 38 |
F-54.59.00.20 | 1″ 5/8-12 | 30-32 | 52,5 | 58,9 | 50 |
F-54.59.00.24 | 1″ 7/8-12 | 38 | 59 | 65,6 | 55 |
